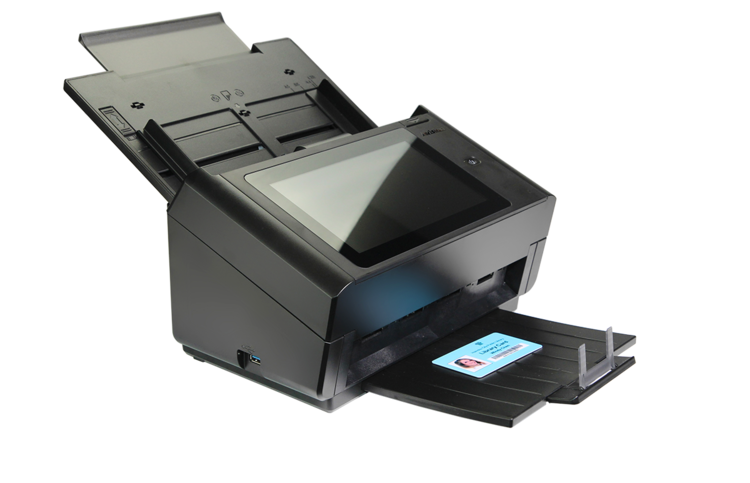

Avision AN 360W

A Fast, Affordable, Network Scanner

The AN360W is a 60-page-per-minute, duplex, and network scanner that is fast, reliable, and affordable for businesses where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. With simply one button, the AN360W series improves your business efficiency by scanning and sending the document to various destinations including e-mail, cloud servers, a shared folder (CIFS), an FTP server, and a USB flash drive. Plus, with the wireless networking capability, the AN360W series offers mobile scanning through Avision’s App.

Product Details

Easy-to-operate 8” LCD Touch Screen

The large 8” LCD touchscreen makes it easy for everyone to scan and share. By assigning your frequently used settings and scanning to destinations as Shortcuts, the AN360W series allows you to streamline your workflow and complete your scanning task in one step. Configuration and management of the scanner can also be performed via the LCD touchscreen.

Convenient mobile scanning

Built-in with a Wi-Fi dongle, the AN360W series can work as a wireless device to scan and receive images directly from your mobile devices through Avision’s App.

Support form document up to 242 x 356 mm (9.5 x 14 in.)

The AN360W series boasts a unique and innovative design in comparison with its predecessors - the ability to accommodate form document up to 242 x 356 mm(9.5 x 14 in.). The extended document width from standard 216 mm (8.5 in.) to 242 mm (9.5 in.) makes the AN360W series more competitive to fit for a wider range of documents.

Convenient walk-up scanning

A USB direct interface is available for scanning files to your USB flash memory drive.

A Duplex Scanner Suited for Documents and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with various sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (50 x 50 mm/2” x 2”) to business documents (242 x 356 mm/9.5 x14 in.). The auto document feeder is also robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance cards up to 1.25mm in thickness.

Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AN360W series delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

Ultrasonic Multi-Feed Detection

With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning documents with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thicknesses.

A Compact Design to Save Your Space

With a stylish design and a compact footprint of 12.4 x 8.1 x 7 in. (316 x 207 x178 mm) (W x D x H), the AN360W series can fit perfectly on a desk in any working environment.

Powerful Bundled Software Applications

The AN360W series comes with a TWAIN driver, and is bundled with a suite of powerful software applications that include Avision Button Manager, AVScan and PaperPort. With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or cloud servers such as Google DriveTM, FaceBook, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that help you streamline your tasks more efficiently.

Features

• Fast, 60ppm / 120ipm scanning in color, grayscale and monochrome (AN360W 300 dpi, color)
• Scanning and sending images to e-mail, a shared folder (CIFS), an FTP folder, cloud servers (Google Drive, Dropbox, Evernote), a USB flash drive, and the product’s memory
• Support form paper up to 242 x 356 mm (9.5 x 14 in.)
• Offer preview feature to view your image result before distributing
• Daily duty cycle up to 6,000 sheets
• Robust 100-page automatic document feeder (75 g/m2, 20 lb)
• Auto crop and deskew a document with the advanced image processing unit to enhance the scanning speed
• Reverse roller technology delivers outstanding feeding reliability
• Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
• Press and scan to cloud servers via the bundled software Button Manager
• Earth-friendly LED technology
• Long page scanning:  5540 mm (218”) (<300 dpi, duplex)/6000 mm (236”) (<200 dpi, duplex)
• Auto power off-setting
