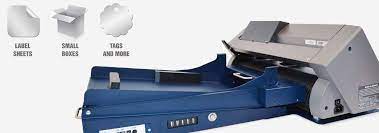

Gemini GMN 40 Digital Finishing System

The Gemini GMN40 allows die cutting on adhesive sheets and digital prints on cardboard, silk-screen prints and print shop materials. A mobile lever lifts the sheets from the loading-feeding tray and inserts them into the plotter. Depending on the thickness of the sheets, the machine may insert from 40 to 100 sheets; while the machine is in operation, additional sheets may be added without the need of stopping the machine.

The system is equipped with an internal vacuum compressor, which does not require external air connections. Proper alignment is achieved by black mark reading for every sheet; a camera equipped with i-mark technology performs black mark reading adjustments in a few tenths of a second.

In addition to the half cut for adhesive sheets, heavy cutting may also be performed for all the applications which require that, such as labels, business cards, shaped business cards, small boxes and more; it successfully cuts cardboard with weight ranging from 7.05 to 12.35 ounces (200 to 350 gr).

Speed varies depending on the complexity of the outline, on average it runs 30-40 seconds when cutting adhesives, while for through cutting the speed is much slower and therefore it is more apt for small jobs or simple cuts.
